Kit motore passo-passo CNC a 3 assi TB6560 1,26 Nm 1,8 gradi Nema 23 Motore passo-passo e driver
This CNC kit included:
- 1 x 3 Axis TB6560 CNC Stepper Motor Driver Board
- 3 x 1.26Nm (178.4oz.in) of Nema 23 Stepper Motor
- 1 x 201W 24V 8.3A 115/230V Switching Power Supply
- 1 x DB25 Parallel Cable & Manual CD
3 Axis TB6560 CNC Driver Board
- Toshiba TB6560AHQ chip - High power, maximum current 3.5A
- Resolution 1, 1/2, 1/8, 1/16 micro stepping output
- Working voltage DC12-DC30V, rated voltage 24V
- Adjustable current with 100%, 75%, 50%, 20% of full current by on-board switch.
- Half current function when no signal to prevent motor heating.
- Build with a 227V 10A Relay.
- Manual Control circuit included.
- Overload, over-current and over-temperature safety.
- Protect the computer by using isolating power(1000V DCDC) and optoelectronic coupler.
- Supports most parallel software MACH3, KCAM4, EMC2 etc.
- Fixed in Aluminum box, better cooling function than fan and safer protection for board circuit.
Stepper Motor
- Manufacturer Part Number: 23HS22-2804S
- Motor Type: Bipolar Stepper
- Step Angle: 1,8 gradi
- Holding Torque: 1.26Nm(178.4oz.in)
- Rated Current/phase: 2.8A
- Voltage: 2.5V
- Phase Resistance: 0.9ohms
- Inductance: 2.5mH ± 20%(1KHz)
- Frame Size: 57 x 57mm
- Body Length: 56mm
- Shaft Diameter: Φ6.35mm
- Shaft Length: 21mm
- Number of Leads: 4
- Lead Length: 500mm
- Weight: 700g

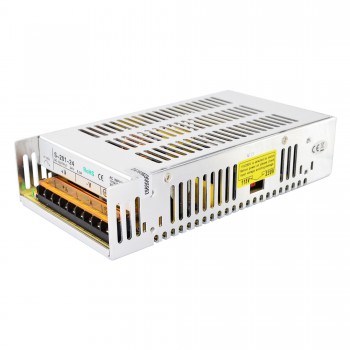

Switching Power Supply
- 24V DC 8.3A output
- AC input voltage range: 93~132V/176~264VAC
- 115V/230V AC selected by switch
- High efficiency low cost
- Free air cooling convection
- Low output ripple and yawp
- Over current, over voltage, short circuit and overheat protections
- 215*115*50mm (L*W*H)
Risorse
- Manuale del conducente: ST-6560V3.pdf
- Scheda tecnica del motore: 23HS22-2804S.pdf
- Manuale di alimentazione: S-201-24.pdf
Motore passo-passo e servomotore in vendita online con qualità garantita e prezzo competitivo su Oystepper.it!
Specifiche del motore | |
---|---|
Lunghezza del corpo(mm) | 56 |
Coppia di tenuta (Ncm) | 126 |
Coppia di tenuta (oz.in) | 178.4 |
Induttanza(mH) | 2.5 |
Lunghezza cavo(mm) | 500 |
Dimensione della cornice | Nema 23 |
Numero di cavo | 4 |
Resistenza di fase(ohm) | 0.9 |
Corrente nominale (A) | 2.8 |
Diametro albero(mm) | 6.35 |
Lunghezza dell'albero(mm) | 21 |
Angolo di passo(°) | 1.8 |
Specifiche del driver passo-passo | |
Tensione di guida(V) | 12 - 30 |
Corrente di uscita(A) | 0.7 - 3.5 |
Microstep(Passi/giro) | 200 - 3200 |
Massimo. Ingresso a impulsi(kHZ) | 40 |
Specifica fisica | |
Peso(g) | 4100 |
